HSP003A-RGB+IR for Palmprint & Palmar Vein Recognition

HSP003A

The Sunny OIT HSP003A Palm Print and Palm Vein Recognition Module integrates palm print, palm vein, and QR code image acquisition. It uses RGB and IR dual-camera image capture technology, allowing users to conveniently obtain high-resolution palm print, palm vein, and QR code image data via a Type-C interface. This module is suitable for a variety of payment scenarios, including restaurants, hotels, and supermarkets.

WeChat ID: shunyuzng

Home / Products/Stereo Camera/HSP003A

Product Specifications

Image Capture	RGB + IR Dual-Camera / Fixed Focus
FOV	116°(H) x 89°(V)
Resolution	960x720
Working Distance	Palm Recognition: 5-12 cm QR Code Scanning: 3-20 cm
Operating Wavelength	850nm

Supported Systems	Android 10.0+ , Windows 7/10
Output Interface	type C, USB 2.0, UVC
Dimensions	414113mm
Power Consumption	1000mW
Working Temperature	-10℃-55℃

Product Applications

Security Turnstiles - Metro, Airport, Office Buildings, etc.

Smart Lockers

Smart Retail

Smart Door Locks

Product Features

Integrated with Multiple Recognition Technologies, Covering Diverse Application Scenarios

Built-in hand and QR code classification algorithms, supporting both palm recognition and QR code scanning.

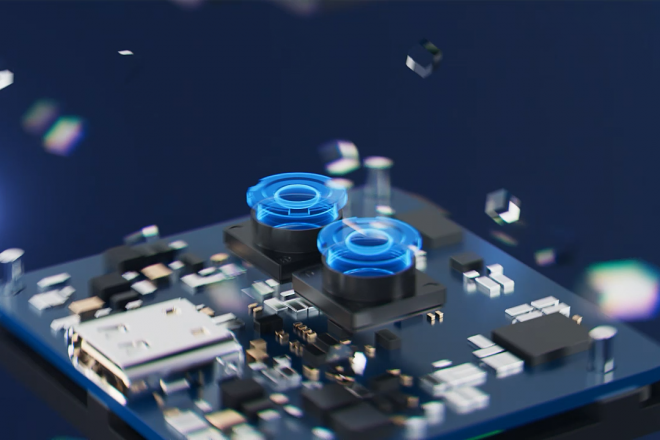

Synchronized RGB-IR image capture.

Built-in fast AE (Auto Exposure) algorithm for IR images.

High-Precision Recognition, Strong Environmental Adaptability

Global shutter image sensor eliminates motion distortion.

Adapts to ultra-wide illumination environments from 0 to 30,000 Lux.

Effectively suppresses infrared strong light interference through an infrared polarization filter.

Sunny Optical has deployed technologies and products based on the two application areas of identification and positioning. The scenario applications cover XR and smart wearables, robots, AIoT (smart home, smart business, smart logistics, etc.). Welcome to contact us, you can add WeChat ID: shunyuzng.
