SL Camera for Edge Avoidance

The Sunny OIT Single-Line Camera provides accurate point cloud information, featuring built-in depth vision image algorithms with an angular resolution of 1°. It processes IR RAW data and outputs depth data to the main platform via a serial port, offering customers precise point cloud information suitable for applications such as robotic vacuum.

WeChat ID: shunyuzng

Home / Products/Structured Light Camera/SL Camera for Edge Avoidance

Product Specifications

Resolution	224*1@105fps
Angular Resolution	0.15°
FOV	90°(H)
FNO	2.4
Working Distance	30~300mm
Operating Wavelength	850nm
Dimensions	32256.5(mm)
Ranging Accuracy	2mm@200mm

Product Applications

Side obstacle avoidance

Object recognition

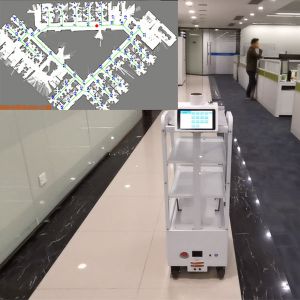

SLAM

Product Features

High precision, high frame rate

High frame rate real-time processing of 3D dynamic capture data output.

High-precision 3D point cloud output with an average error within ±2%.

Built-in depth vision image algorithms for easy backend invocation.

Certified with Laser Class I safety standards, ensuring no harm to human eyes.

Sunny Optical has deployed technologies and products based on the two application areas of identification and positioning. The scenario applications cover XR and smart wearables, robots, AIoT (smart home, smart business, smart logistics, etc.). Welcome to contact us, you can add WeChat ID: shunyuzng.
