Product Specifications
| IR FOV | 79°(H) x 55°(V) |
| IR Resolution | 1280 x 800@12fps |
| IR Data Format | MJPEG |
| Depth Resolution | 640 x 400@12fps |
| Working Distance | 0.3-1.2m |
| Depth Data Format | RAW16 |
| RGB FOV | 77°(H) x 62°(V) |
| RGB Resolution | 1920*1080 @30fps |
| RGB HDR ISP | YES |
| Dimensions | 61*18*13.5 mm |
| Output Interface | USB 2.0 |
| Working Temperature | -5 to 40℃, humidity less than 95% |
Product Applications
Smart door lock
Facial recognition and liveness detection

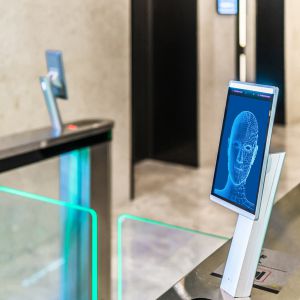

Access control turnstile
Product Features
High-precision acquisition, financial payment-level security
Achieves high-resolution real-time acquisition of speckle, IR, and RGB data, ensuring a collection error rate of less than 0.6%.
Features strong light interference resistance, supports automatic exposure, and adapts to various complex environments.
Compact size, low power consumption, easy to integrate.
