Wide FOV TOF RGB Module-Obstacle Avoidance & Recognition

Wide FOV TOF RGB Module

The Sunny OIT Wide FOV TOF RGB Module can achieve fusion and registration of RGB and 3D point cloud data. Equipped with an embedded depth perception algorithm SDK, it is compatible with the UVC protocol, enabling driver-free plug-and-play convenience. This module provides precise visual perception capabilities for home sweeping robots, companion robots, and more.

WeChat ID: shunyuzng

Home / Products/ToF Camera/Wide FOV TOF RGB Module

Product Specifications

Depth Resolution	224*109@10fps
Depth FOV	120°(H)*56°(V)
Depth Accuracy	±1.5cm @10-50cm≤1.5cm @0.5-4m

RGB Resolution	1920*1080@10fps
RGB FOV	120°(H)*59°(V)
Output Interface	MIPI

Product Applications

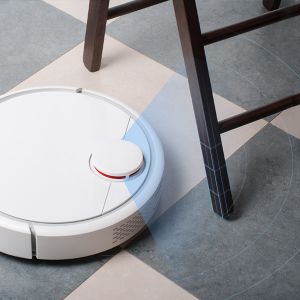

Robot Recognition and Obstacle Avoidance

Product Features

Comprehensive Visual Coverage, Enhanced Perception Capabilities

Fusion and registration of RGB and 3D point cloud data, assisting robots in better understanding their surroundings.

Wide-angle field of view coverage, providing stable and reliable visual perception experiences.

Equipped with an embedded depth perception algorithm SDK, supporting UVC protocol for driver-free plug-and-play convenience.

Sunny Optical has deployed technologies and products based on the two application areas of identification and positioning. The scenario applications cover XR and smart wearables, robots, AIoT (smart home, smart business, smart logistics, etc.). Welcome to contact us, you can add WeChat ID: shunyuzng.
