Product Specifications
| Working distance | 0.1m-2.5m @90% reflectance |
| LED Operating Wavelength | 940nm |
| Dimensions | 52*26*26.6 mm |
| Supported Systems | Linux Ubuntu14.04/16.04,Windows X86/X64 |
| Accuracy | ±1.5cm @10cm-50cm；≤1.5% @50cm-2.5m |
| Output interface | USB 2.0 |
| RGB | FOV | 110°(H)*59°(V) |
| Resolution | 1280*720 | |
| Frame Rate | 10fps | |
| Depth | FOV | 120°(H)*56°(V) |
| Resolution | 224*109 | |
| Frame Rate | 10fps@224*109 |
Product Applications

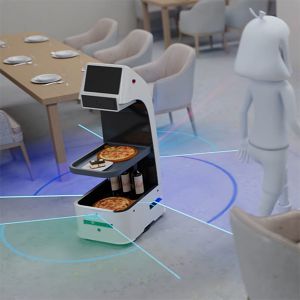

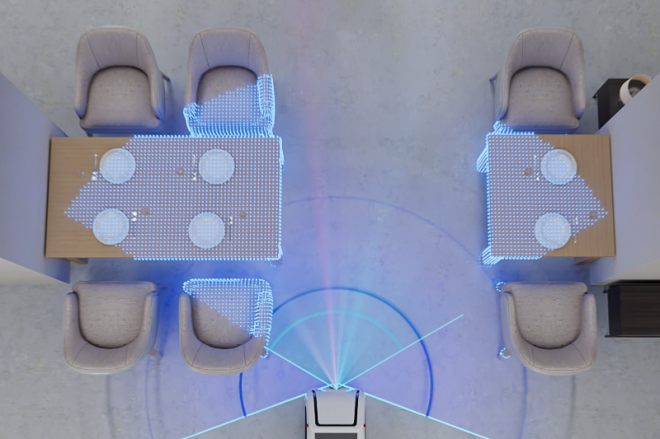

Robot Obstacle Avoidance
Product Features
Omni-Directional Visual Perception Capability
Uses a wide-angle design to achieve precise registration, fusion of RGB and 3D point cloud data.
Provides an embedded depth perception algorithm SDK, supporting UVC protocol for driver-free plug-and-play.
High Safety and Environmental Adaptability
Complies with Laser Class I safety certification, ensuring safe usage.
Supports IP65 dust and water resistance, adapting to diverse environments.
Contact Us
Sunny Optical has deployed technologies and products based on the two application areas of identification and positioning. The scenario applications cover XR and smart wearables, robots, AIoT (smart home, smart business, smart logistics, etc.). Welcome to contact us, you can add WeChat ID: shunyuzng.
