USB MONO Camera-RGB Scanning & Positioning

USB MONO Camera

The Sunny OIT USB MONO Camera is specifically designed for top-assisted positioning of indoor mobile robots. Utilizing the UVC protocol, it ensures high compatibility with plug-and-play functionality. This module features a wide-angle lens with low distortion, providing clear and accurate visual information. Additionally, the integrated infrared illumination function enhances imaging performance in low-light conditions, ensuring stable camera performance across various lighting environments.

WeChat ID: shunyuzng

Home / Products/USB Camera/USB MONO Camera

Product Specifications

Resolution	1.3M (1080*1280)
FOV	57°(H)*68.6°(V)
FNO	2.4
DOF	0.5m~∞（AT=2.5m）
Frame Rate	1.3M@15fps/VGA@20fps
Power Consumption	≤2W

Working Temperature	-10℃~50℃
Storage Temperature	-30℃~80℃
Output Interface	USB
Output Format	YUY
Power Supply	DC 12.0V

Product Applications

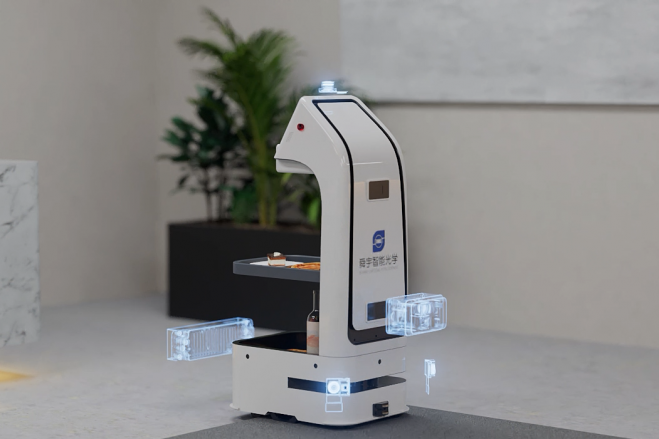

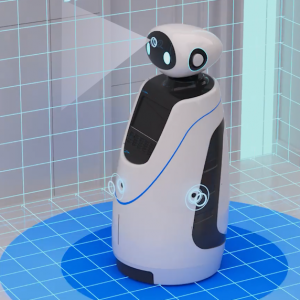

Top-mounted visual assistance for robot positioning

Product Features

An Efficient Solution for Indoor Mobile Robot Positioning and Visual Assistance

High frame rate support for smooth dynamic scene capture, offering 1.3MP@15fps and VGA@20fps to meet visual requirements in various scenarios.

Flexible exposure control with manual and automatic exposure options including timestamp support, catering to recognition needs under different lighting conditions.

Supports soft synchronization functionality to enhance coordination and efficiency among various robot modules.

Equipped with USB2.0 and YUV protocol for fast and stable data transmission.

Sunny Optical has deployed technologies and products based on the two application areas of identification and positioning. The scenario applications cover XR and smart wearables, robots, AIoT (smart home, smart business, smart logistics, etc.). Welcome to contact us, you can add WeChat ID: shunyuzng.
